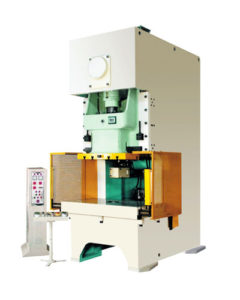

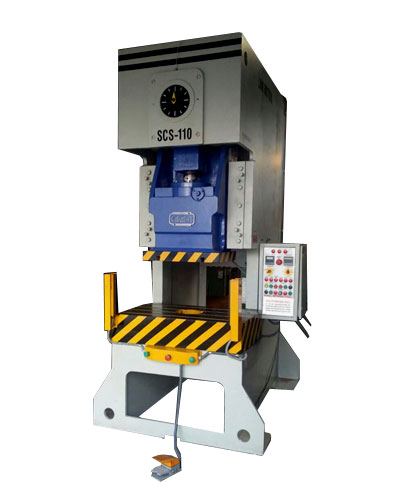

CROSS SHAFT PRESS
Specifications:
Sohal Power Press offer Cross Shaft Press that is used in several industrial applications.
TECHNICAL SPECIFICATIONS
| Capacity Tons | 32 | 40 | 63 | 80 | 100 | 160 | 200 | 250 |
| Bolster L-RxF-B | 630×400 | 800×450 | 850×500 | 960×570 | 1000×625 | 1120×650 | 1250×800 | 1250×800 |
| Slide Area L-RxF-B | 350×250 | 400×325 | 500×400 | 500×400 | 625×425 | 700×590 | 875×775 | 900×775 |
| Day Light (SUAU) | 330 | 340 | 400 | 420 | 450 | 560 | 650 | 675 |
| Strong Length Fix | 60 | 60 | 100 | 100 | 125 | 160 | 200 | 200 |
| Stroke Length (Adi) | 8-60 | 8-60 | 8-100 | 8-100 | 8-125 | 8-160 | 8-200 | 8-200 |
| Slide Adjustment | 63 | 63 | 70 | 70 | 80 | 100 | 100 | 125 |
| Shut Height (SDAU) | 270 | 280 | 300 | 320 | 325 | 400 | 450 | 475 |
| Nos of Slide Strokes (SPM) | 50 | 50 | 50 | 50 | 45 | 40 | 40 | 35 |
| Fly Wheel Energy (kJ) | 4.4 | 8 | 16.75 | 20 | 25 | 55 | 70 | 80 |
| Height from floor to top | 800 | 850 | 856 | 850 | 850 | 900 | 900 | 900 |
| Main Motor (HP) | 3 | 5 | 7.5 | 7.5 | 10 | 20 | 20 | 25 |
| Req.air pressure for pneumatic cluth (Kg/Cm2) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Capacity | 1.7 | 4.5 | 70 | 80 | 100 | 200 | 200 | 270 |
| Stroke | 50 | 50 | 50 | 50 | 50 | 75 | 100 | 100 |
| Air pressure (Kg/Cm2) | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
